Hydrogeological Framework of the Brunswick Aquifer at the Stony Brook-Millstone Watershed Association Well Field, Wargo Rd., Hopewell Twp., Mercer County, New Jersey

ABSTRACT: A hydrogeological framework study of the the Brunswick aquifer was conducted at the hydrogeological research site (well field) located in the nature preserve at the Stony Brook - Millstone Watershed Association, Hopewell Twp., Mercer County, New Jersey. The study incorporates borehole geophysical logs collected by the U.S. Geological Survey in 1994 in ten of  the thirteen wells drilled on site. Most of these wells were drilled in 1966 as test wells for a field project designed to demonstrate the anisotropic transmissive properties of shale bedrock. The data catalogued here incudes borehole geophysical data for nine wells including 6 of the research wells and 3 wells associated with the Honey Brook Organic Farm. Two of the  farm wells were drilled in 2003 and 2006 as test wells for potential alternate water supply sources for the farm. Optical televiewer data were collected by the N.J. Geological Survey for the wells that are drilled into red and gray mudstone and dark gray shale of the Passaic Formation. The study summarizes the orientation of stratigraphic bedding and tectonic fractures encountered in the well boreholes and the nature and locations of water-bearing features.

Index Map

KEYWORDS: Brunswick aquifer, Passaic Formation, Piedmont Province, Newark Basin, Hopewell Township, Mercer County, Bedrock Geology ORGANIZATION: New Jersey Geological Survey ORIGINATORS: G.C. Herman DATE: December 17, 2003 NAD83 NJ STATE PLANE COORDINATES (APPROX.): EASTING 417634, NORTHING 555770 7-1/2' TOPOGRAPHIC QUADRANGLE: Hopewell, N.J. NJGS_FIELD_BOOK: G.C. Herman Books17 and 18

CONTENTS of directory of .\NJGS_Data_Catalog\Geology\Bedrock\Aquifer_investigations\Stony_Brook_Millstone_GWI

FILE FILE SIZE(KB) DATE TIME COMMENT

contents.html 11023 2008-04-01 11:38 - File currently being viewed

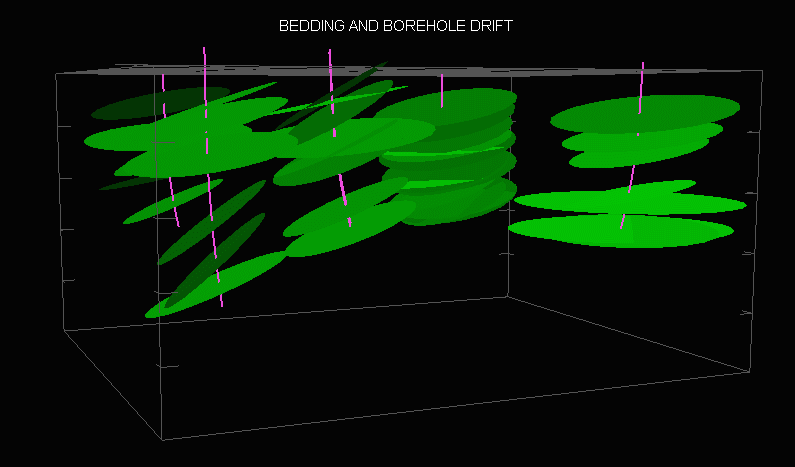

3DBDELPS.GIF 18250 2005-04-01 9:57 - Graphic image showing 3D interpretation of bedding planes

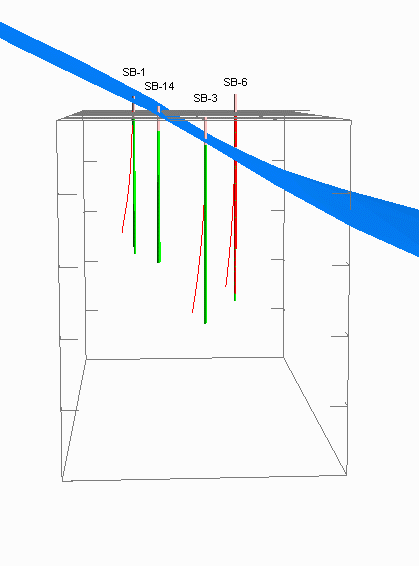

3DSMALL.GIF 9098 2003-03-26 11:27 - Graphic image showing 3D interpretation of bedding plane and USGS logs

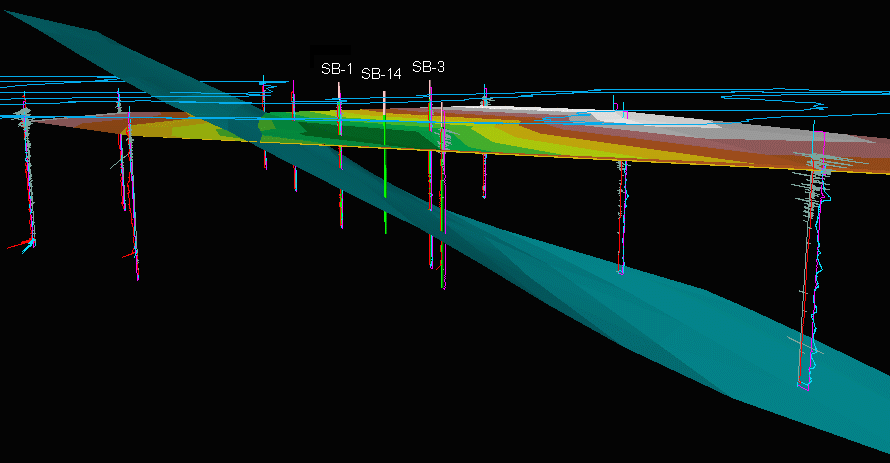

3DTINS.GIF 27947 2005-04-01 9:56 - Graphic image showing 3D interpretation of bedding plane and USGS logs
all_beds_fracs.gif 62876 2006-11-06 14:41 - Structural interpretation of stratigraphic beds and fractures for all wells having OPTV records

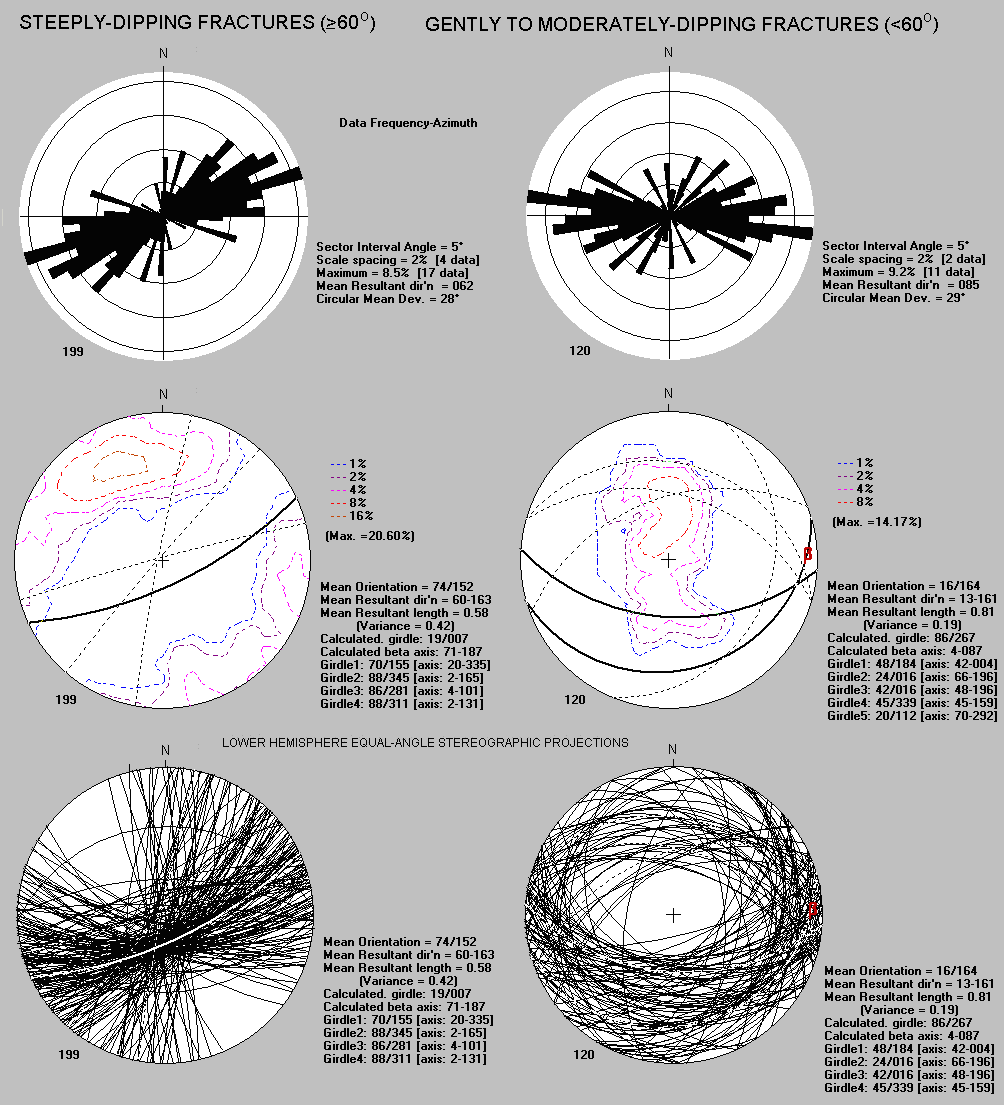

gentle-mod-steep_dip_fracs.gif 54330 2006-11-06 13:35 - Structural interpretation of fractures for all wells having OPTV records

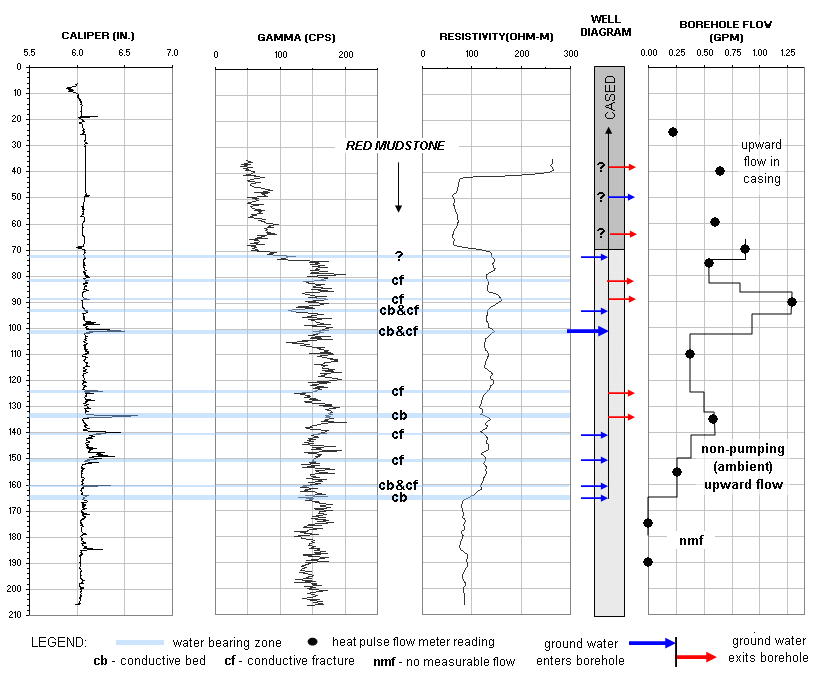

OFHW_logsum.gif 33517 2006-11-03 15:37 - Borehole geophysical log summary and interpretations of hydrostratigraphy
OFHW_optvdata.jpg 1157066 2005-04-15 10:03 - Interpreted optical televiewer borehole image (1/12 scale)
OFHW_optvdata.txt 11001 2005-04-15 9:15 - ASCII text file of interpreted optical televiewer features

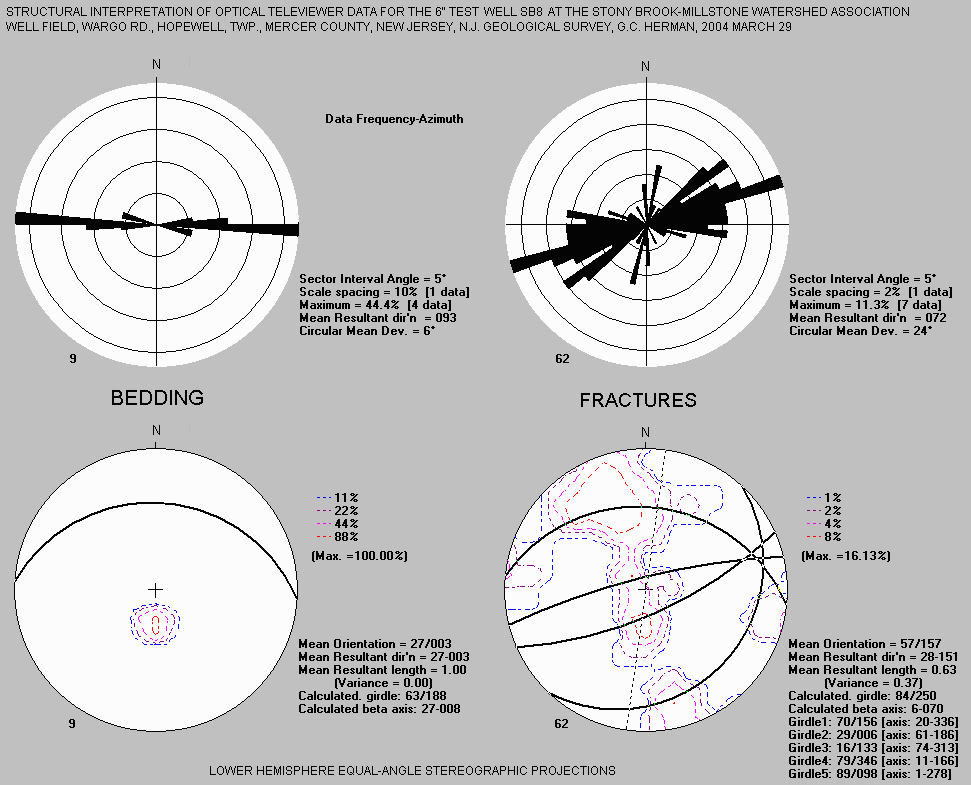

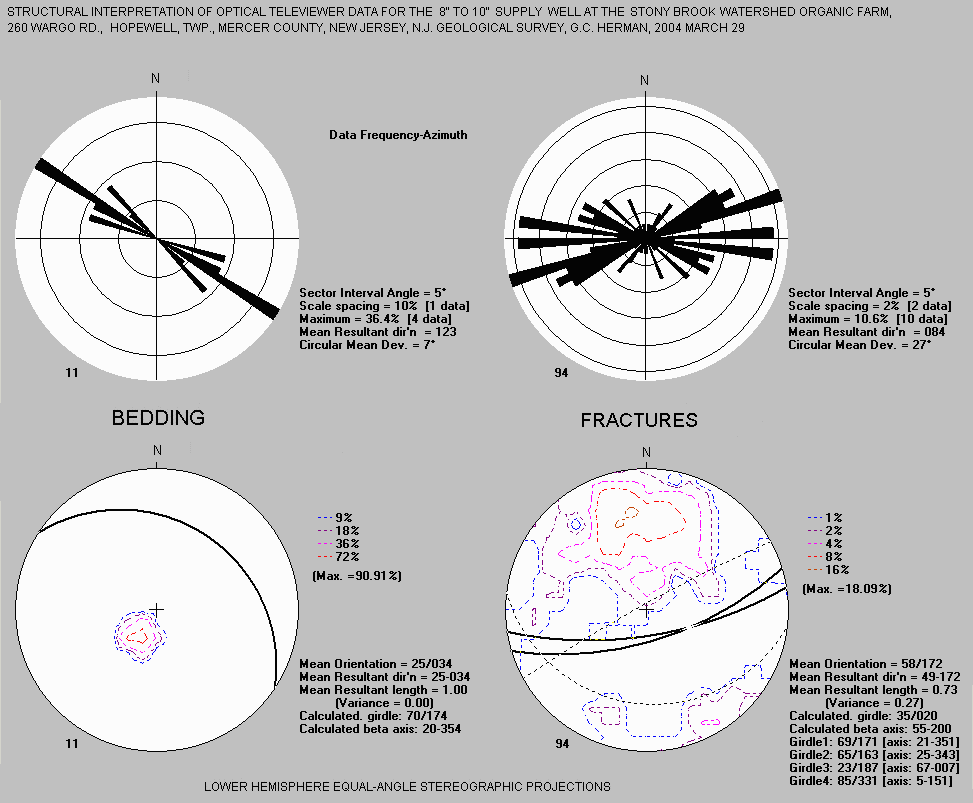

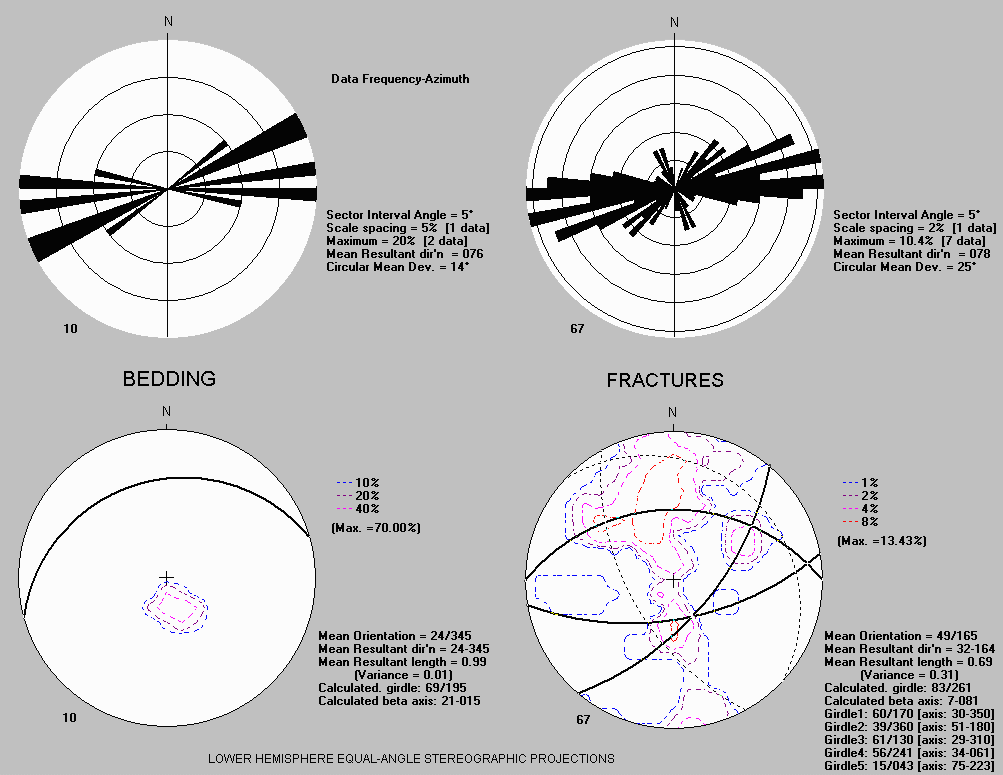

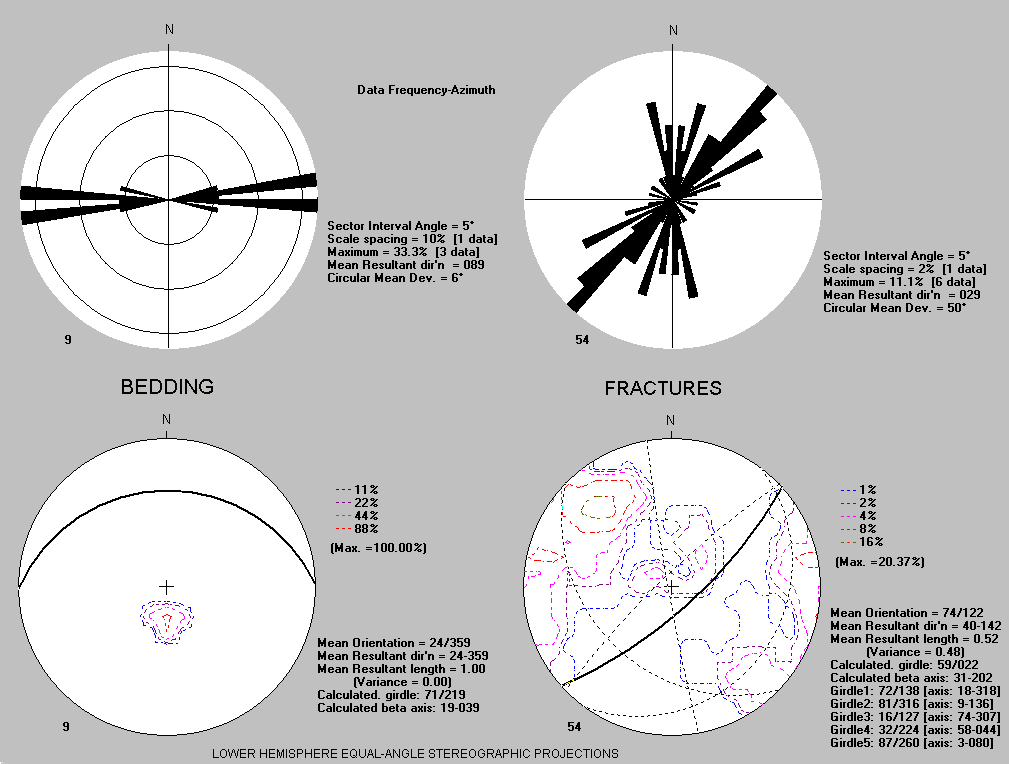

OFHW_structures.gif 26293 2006-10-06 9:35 - Structural interpretation of stratigraphic beds and fractures

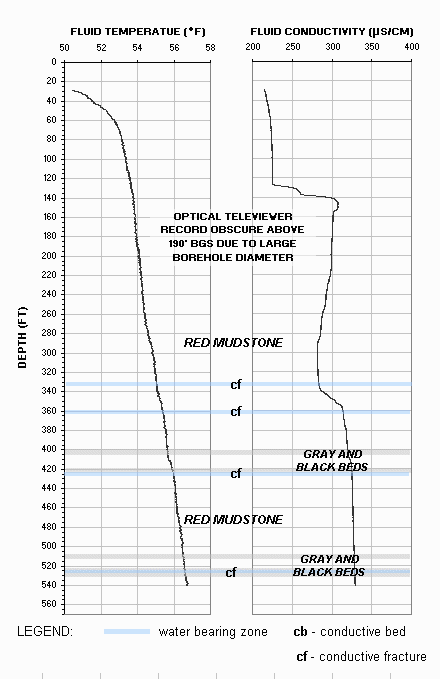

OFW1_logsum.gif 17612 2006-11-03 15:24 - Borehole geophysical log summary and interpretations of hydrostratigraphy
OFW1_optvdata.jpg 3249462 2005-05-09 11:06 - Interpreted optical televiewer borehole image (1/12 scale)
OFW1_optvdata.txt 14904 2004-03-17 11:09 - ASCII text file of interpreted optical televiewer features
OFW1_structures.gif 28467 2004-04-02 9:57 - Structural interpretation of stratigraphic beds and fractures

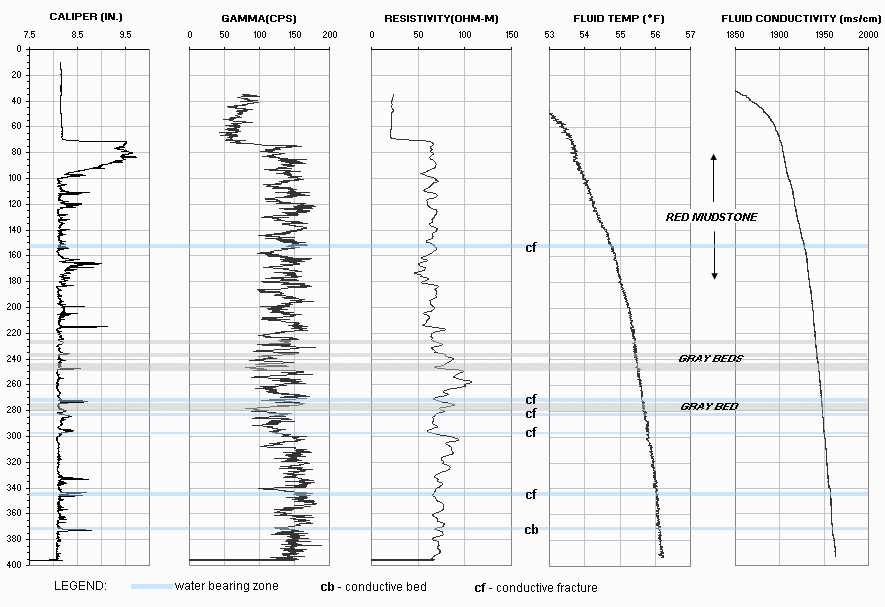

OFW2_logsum.gif 31860 2006-11-03 15:23 - Borehole geophysical log summary and interpretations of hydrostratigraphy
OFW2_optvdata.jpg 2120407 2005-04-20 11:53 - Interpreted optical televiewer borehole image (1/12 scale)
OFW2_optvdata.txt 9042 2006-11-06 10:21 - ASCII text file of interpreted optical televiewer features
OFW2_structures.gif 24323 2006-10-06 9:35 - Structural interpretation of stratigraphic beds and fractures

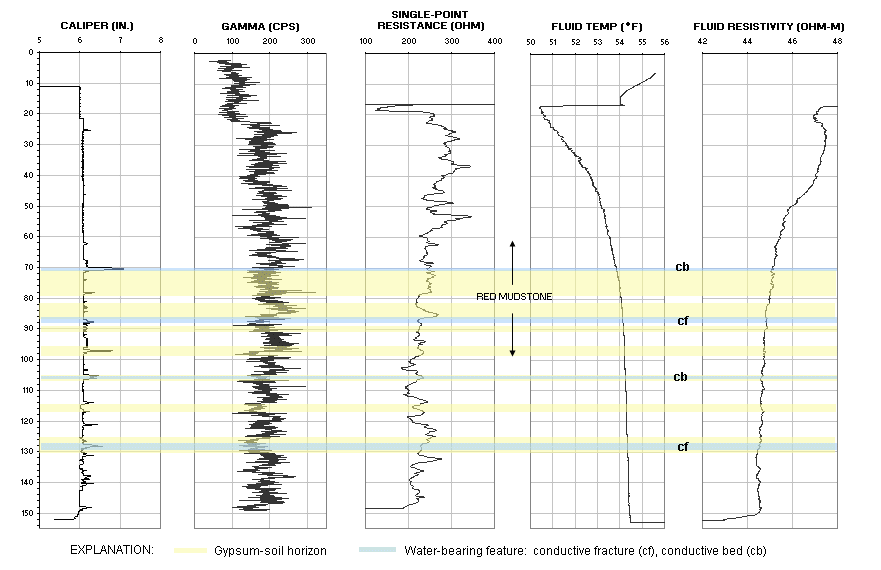

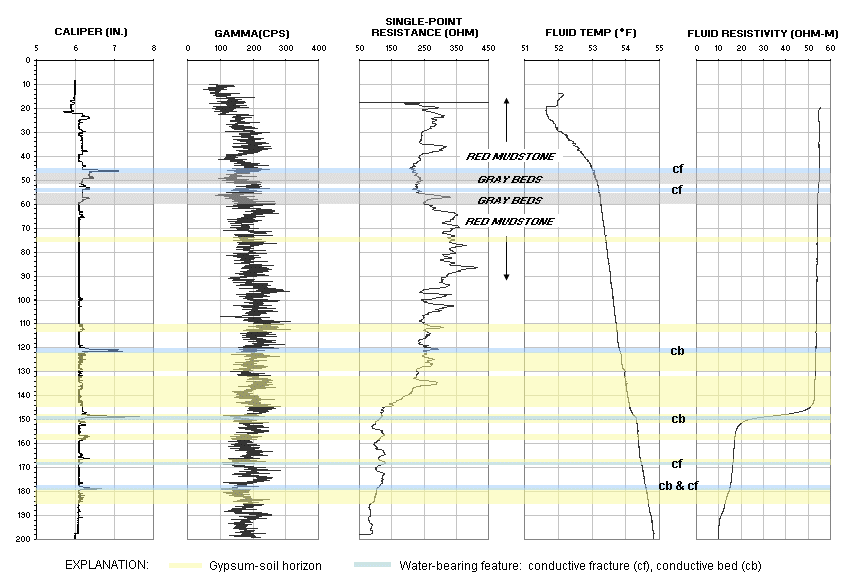

SB1_LOGSUM.GIF 27344 2008-03-18 13:54 - Borehole geophysical log summary and interpretations of hydrostratigraphy
SB1_optvdata.jpg 920391 2004-04-02 13:08 - Interpreted optical televiewer borehole image (1/12 scale)
SB1_optvdata.txt 6448 2004-03-17 9:40 - ASCII text file of interpreted optical televiewer features

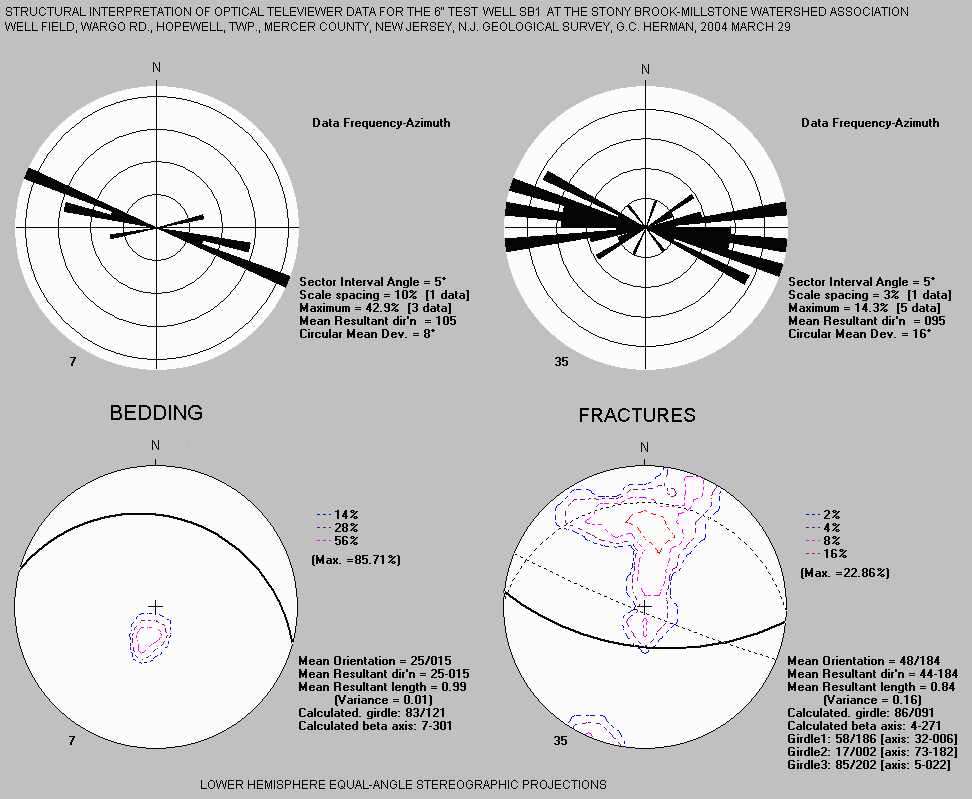

SB1_structures.gif 25895 2004-04-02 10:10 - Structural interpretation of stratigraphic beds and fractures

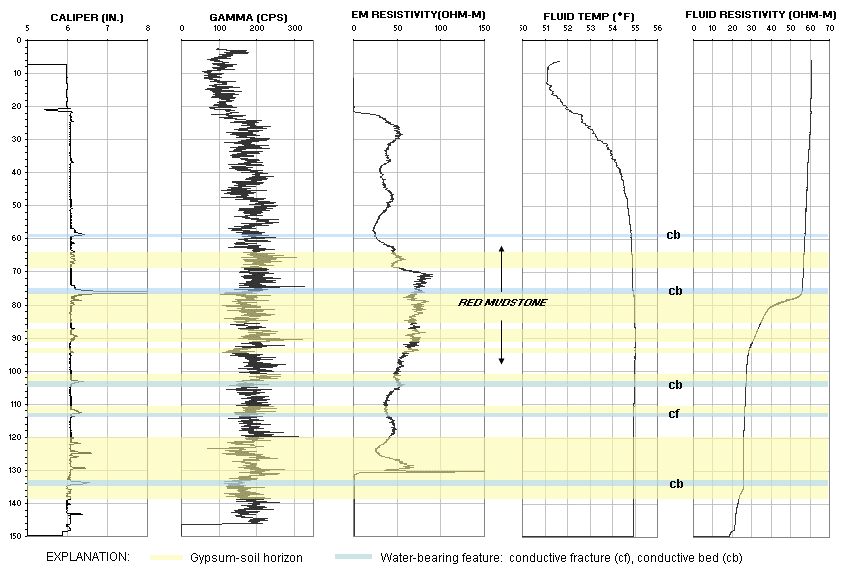

SB3_LOGSUM.GIF 29976 2007-02-08 16:52 - Borehole geophysical log summary and interpretations of hydrostratigraphy
SB3_optvdata.jpg 1084978 2004-04-02 13:09 - Interpreted optical televiewer borehole image (1/12 scale)
SB3_optvdata.txt 6872 2004-03-17 9:40 - ASCII text file of interpreted optical televiewer features

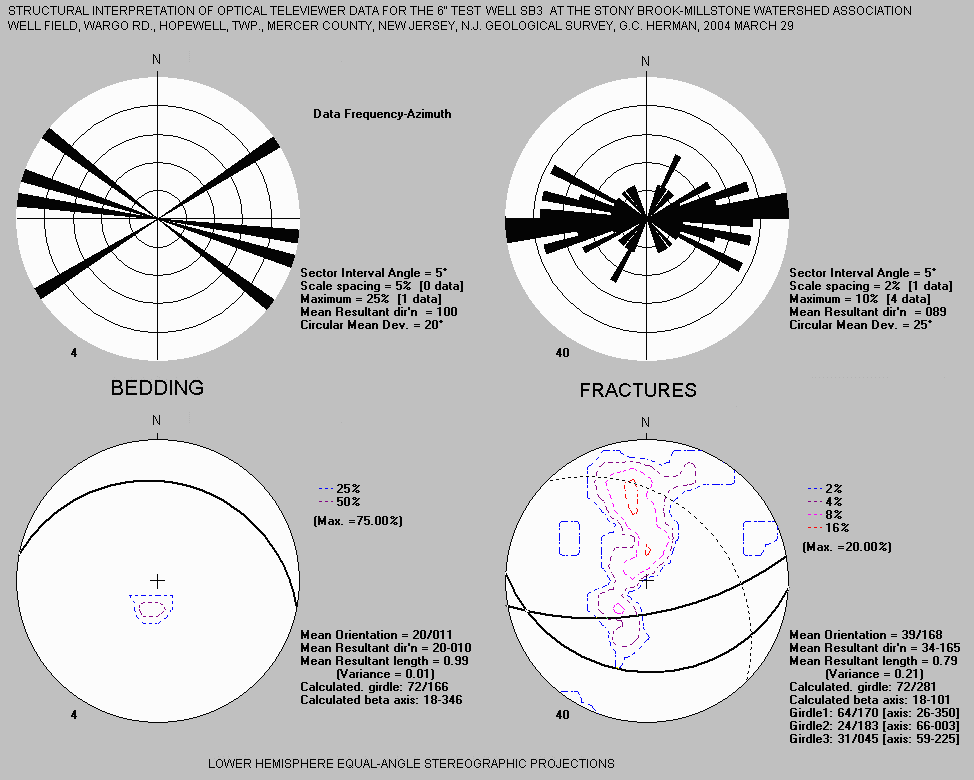

SB3_structures.gif 26120 2004-04-02 10:13 - Structural interpretation of stratigraphic beds and fractures

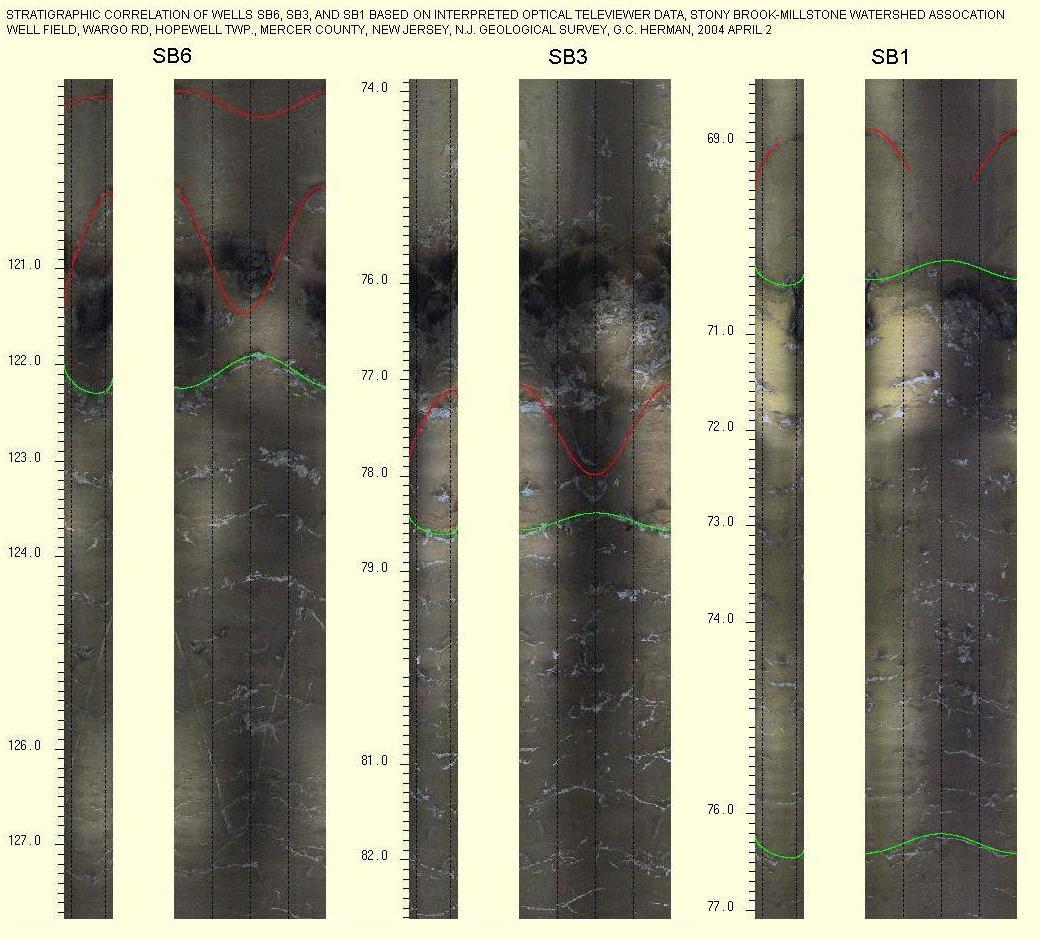

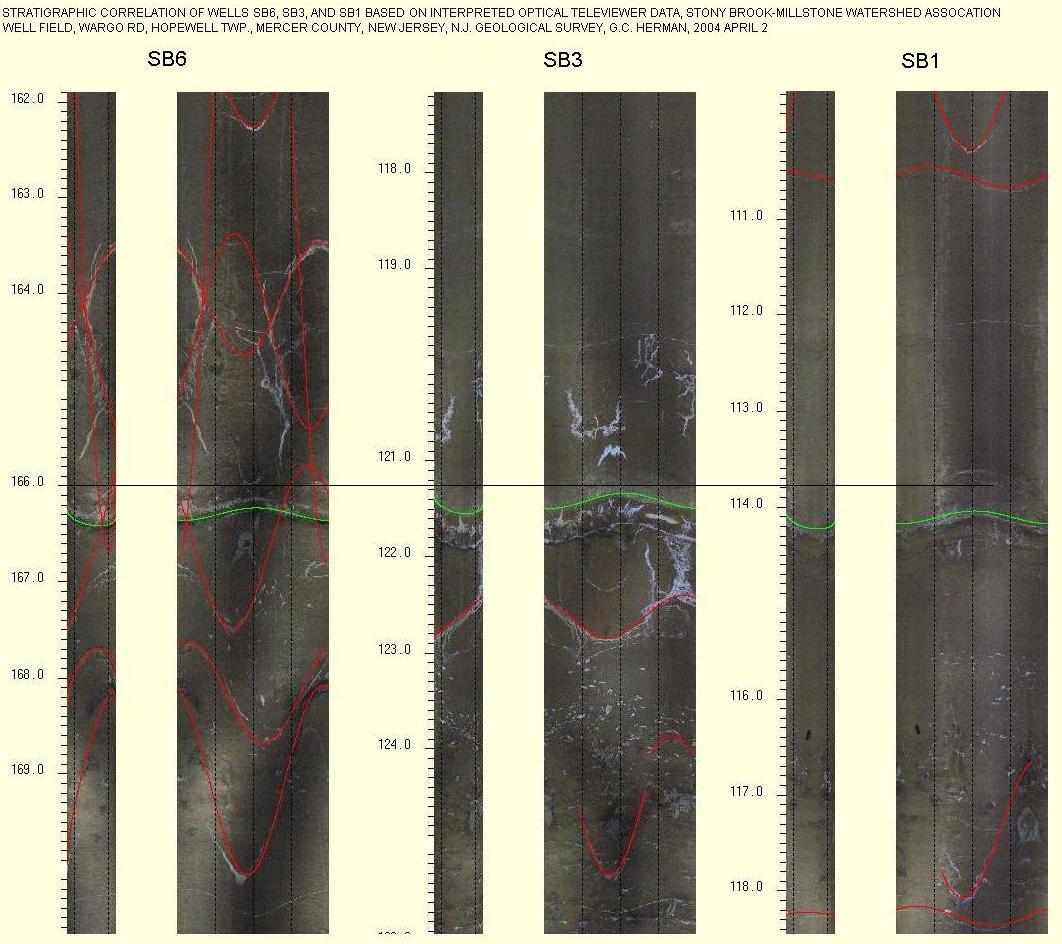

SB6_3_1_CORa.jpg 150151 2004-04-07 10:10 - Raster image showing stratigraphic correlation between wells SB6, SB3, and SB1
SB6_3_1_CORb.jpg 153707 2004-04-07 8:14 - Raster image showing stratigraphic correlation between wells SB6, SB3, and SB1
SB6_LOGSUM.GIF 31920 2008-03-18 14:51 - Borehole geophysical log summary and interpretations of hydrostratigraphy
SB6_optvdata.jpg 1353874 2004-04-02 13:10 - Interpreted optical televiewer borehole image (1/12 scale)
SB6_optvdata.txt 8496 2004-03-17 16:07 - ASCII text file of interpreted optical televiewer features
SB6_structures.gif 27074 2004-04-02 10:18 - Structural interpretation of stratigraphic beds and fractures

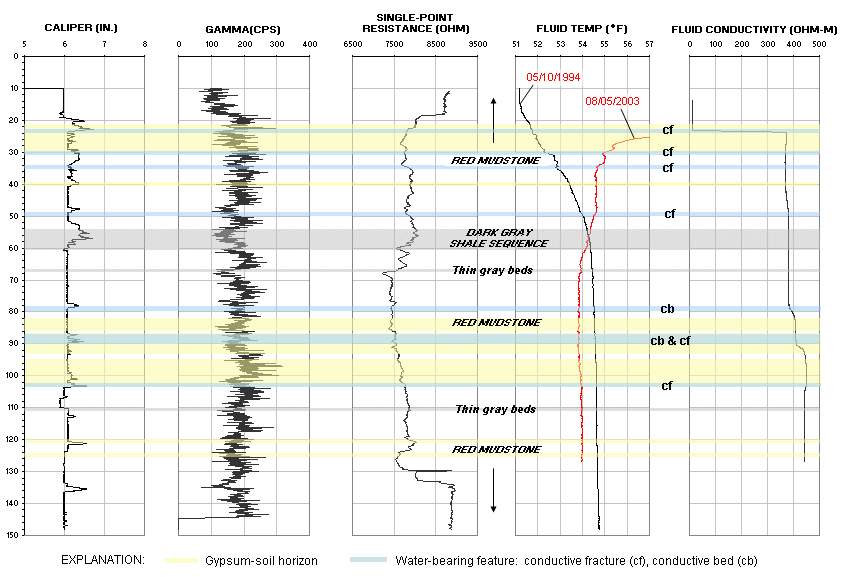

SB8_LOGSUM.GIF 37028 2008-03-18 15:08 - Borehole geophysical log summary and interpretations of hydrostratigraphy
SB8_optvdata.jpg 1054294 2004-04-02 13:11 - Interpreted optical televiewer borehole image (1/12 scale)
SB8_optvdata.txt 10409 2004-03-18 9:54 - ASCII text file of interpreted optical televiewer features
SB8_structures.gif 27691 2004-04-02 10:19 - Structural interpretation of stratigraphic beds and fractures

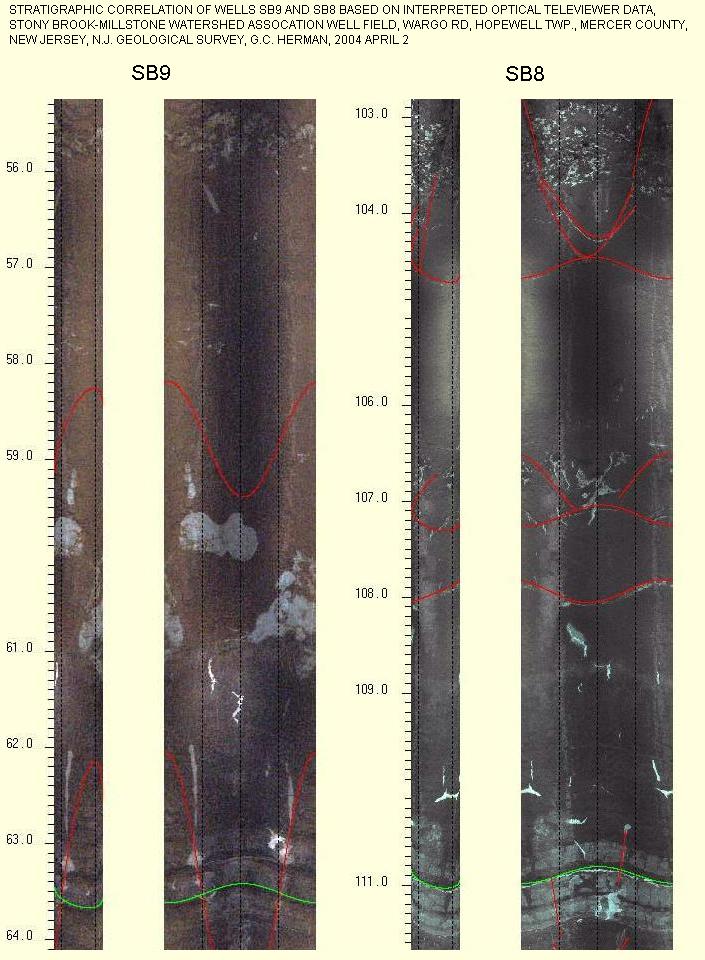

SB9_8COR.jpg 119506 2004-04-02 16:15 - Raster image showing stratigraphic correlation between wells SB9 and SB8

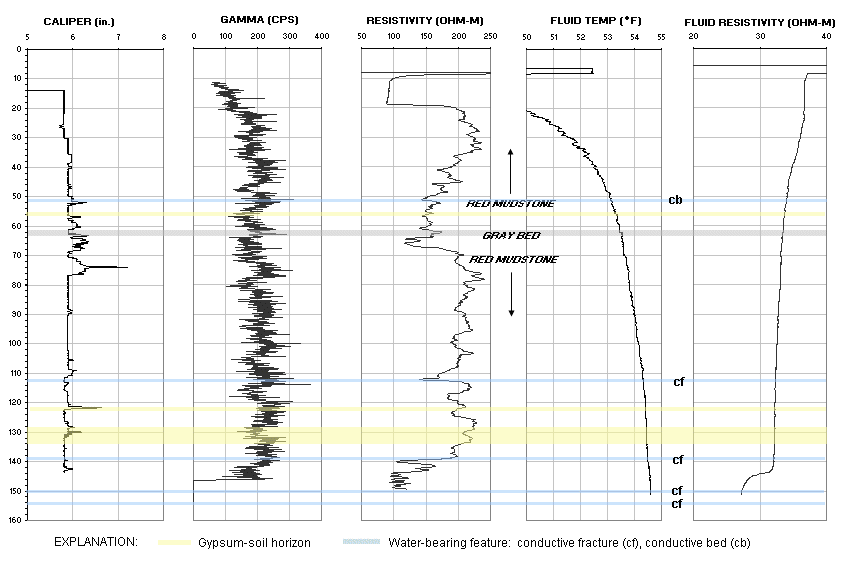

SB9_LOGSUM.GIF 28299 2008-03-18 15:19 - Borehole geophysical log summary and interpretations of hydrostratigraphy
SB9_optvdata.jpg 1128838 2004-04-02 13:12 - Interpreted optical televiewer borehole image (1/12 scale)
SB9_optvdata.txt 4832 2004-03-16 15:22 - ASCII text file of interpreted optical televiewer features
SB9_structures.gif 25671 2004-04-02 10:20 - Structural interpretation of stratigraphic beds and fractures

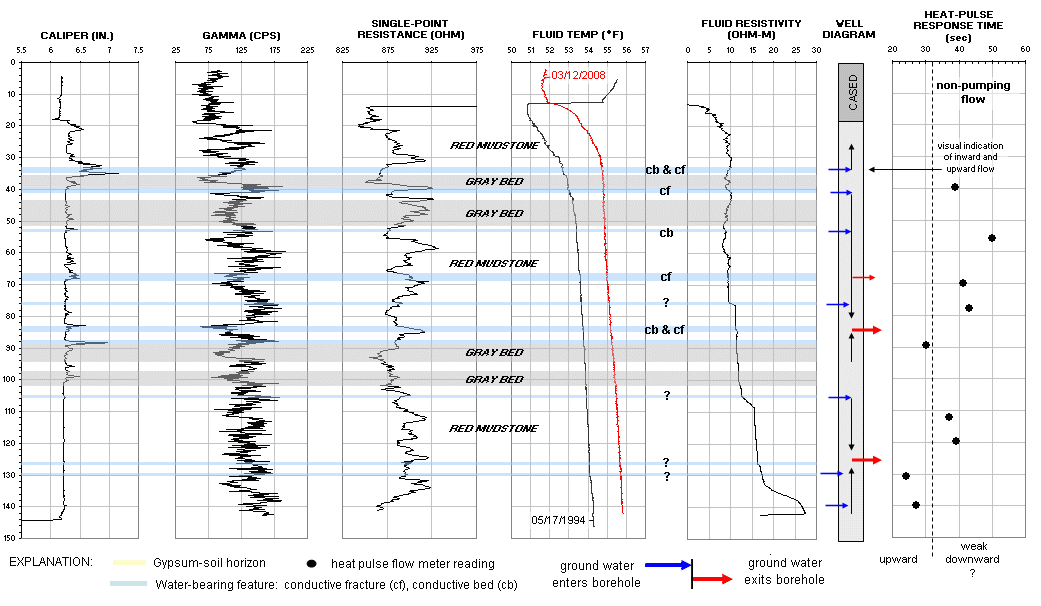

SB11_LOGSUM.GIF 50711 2008-03-19 8:11 - Borehole geophysical log summary and interpretations of hydrostratigraphy
SB11_optvdata.jpg 1142473 2008-03-14 14:28 - Interpreted optical televiewer borehole image (1/12 scale)
SB11_optvdata.txt 11938 2008-03-14 14:34 - ASCII text file of interpreted optical televiewer features
SB11_optvdata8x.jpg 1701860 2008-03-18 11:26 - Interpreted optical televiewer borehole image (1/8 scale)
SB11_structures.gif 25331 2008-03-17 11:41- Structural interpretation of stratigraphic beds and fractures

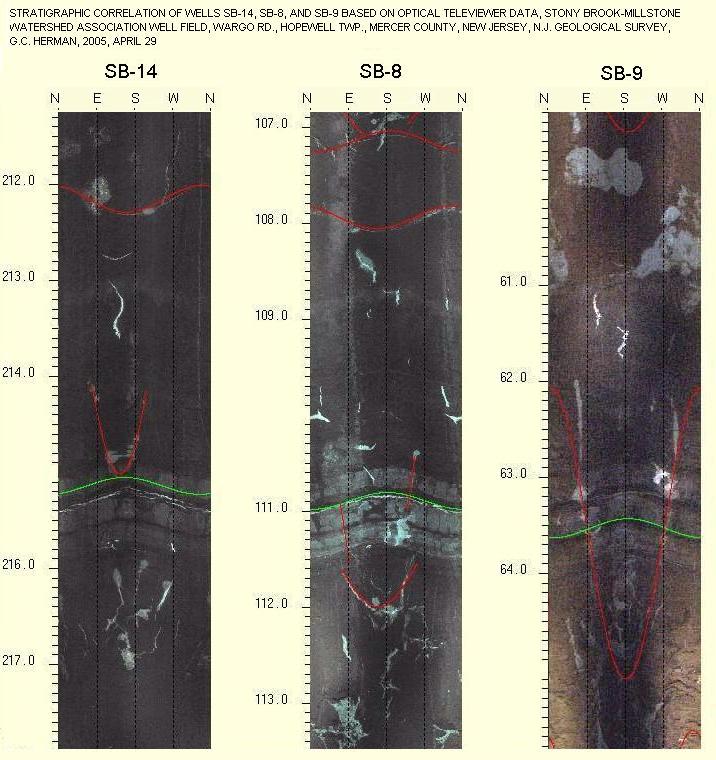

SB14_8_9_CORa.JPG 95840 2007-01-02 8:45 - Raster image showing stratigraphic correlation between wells SB14, SB8, and SB9

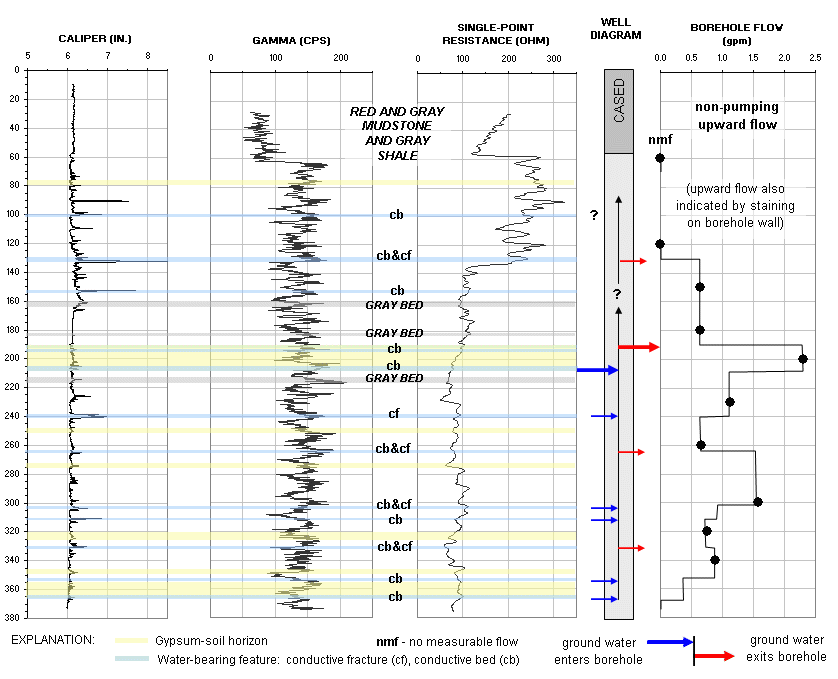

SB14_LOGSUM.GIF 41670 2008-03-18 15:26 - Borehole geophysical log summary and interpretations of hydrostratigraphy

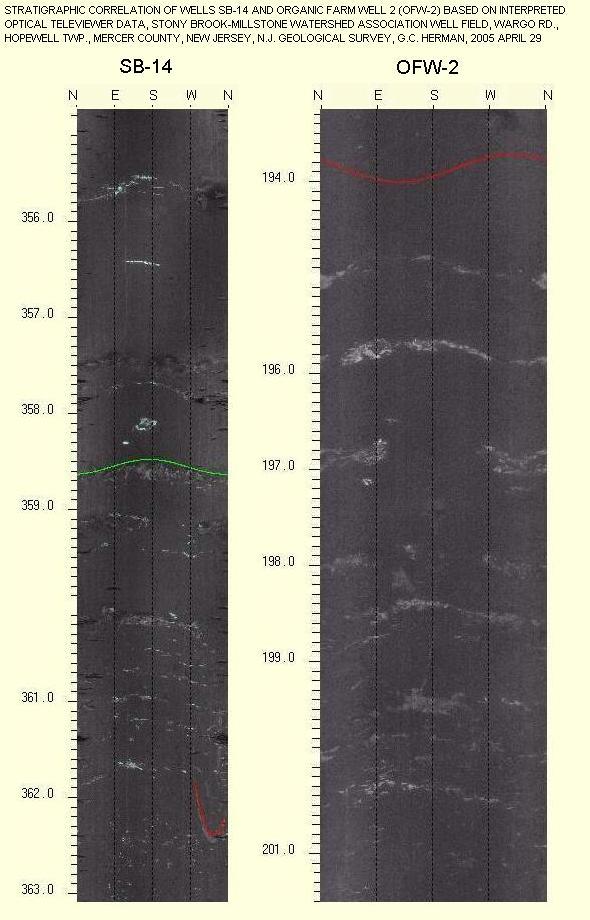

SB14_OFW2_CORa.jpg 82922 2007-01-02 8:56 - Raster image showing stratigraphic correlation between wells SB14 and OFW2
SB14_optvdata.jpg 2256607 2005-04-20 9:18 - Interpreted optical televiewer borehole image (1/12 scale)
SB14_optvdata.txt 10959 2005-04-18 9:22 - ASCII text file of interpreted optical televiewer features

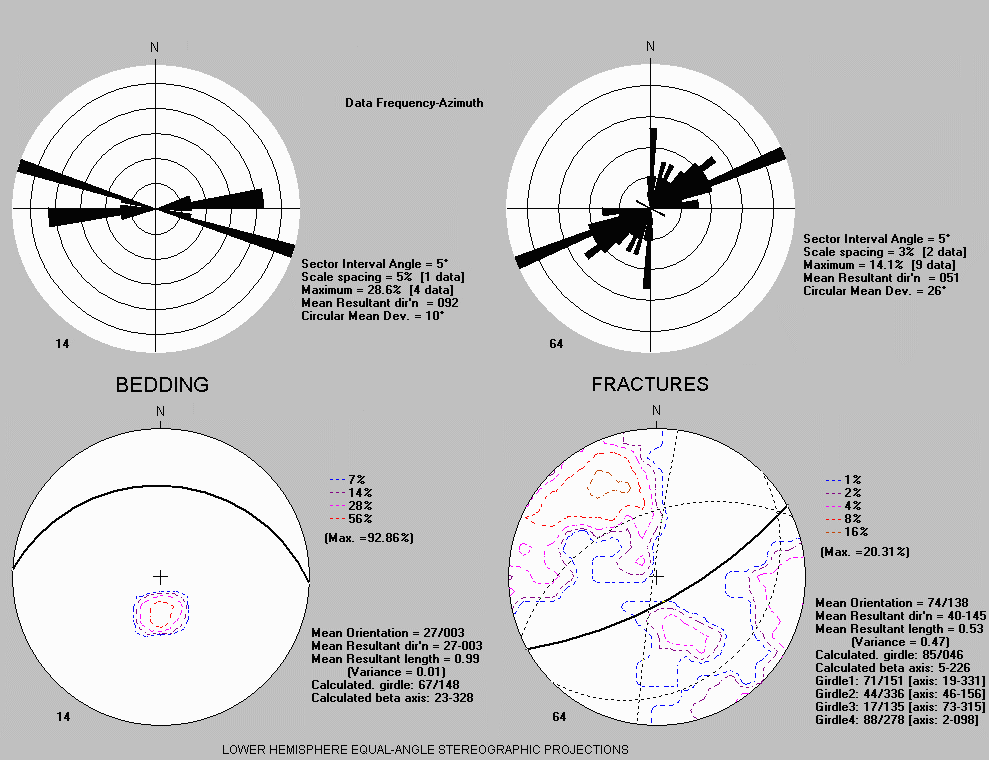

SB14_structures.gif 38293 2006-11-06 9:47 - Structural interpretation of stratigraphic beds and fractures

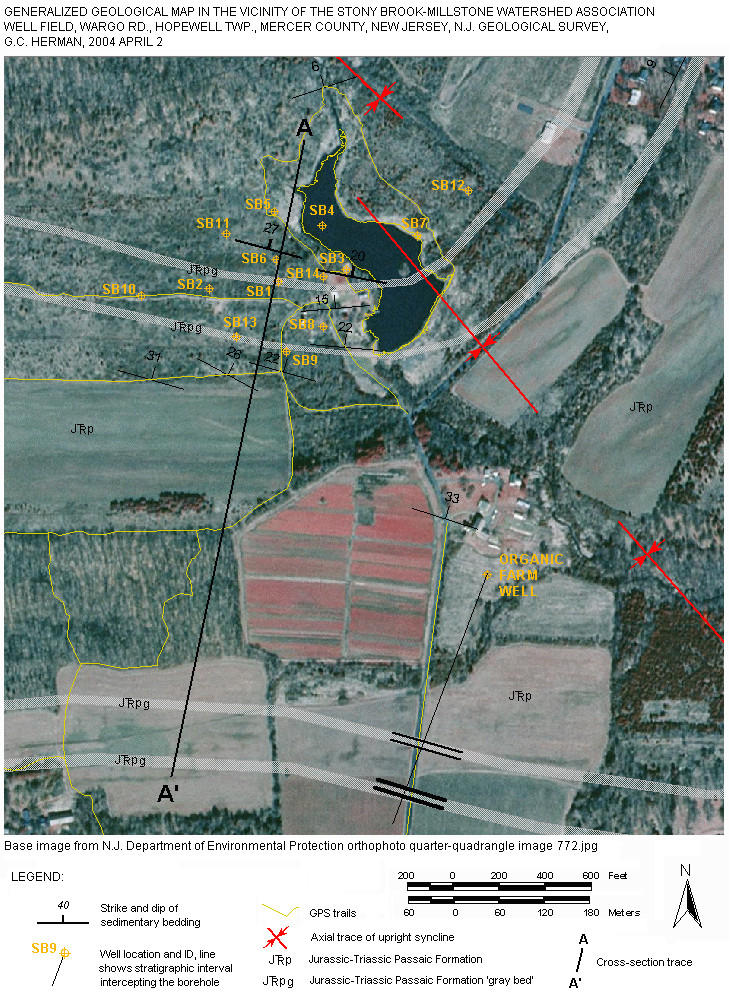

SB_DOQQ_map.gif 449773 2004-04-08 11:46 - Index map of the Stony Brook - Millstone wellfield and the organic farm well

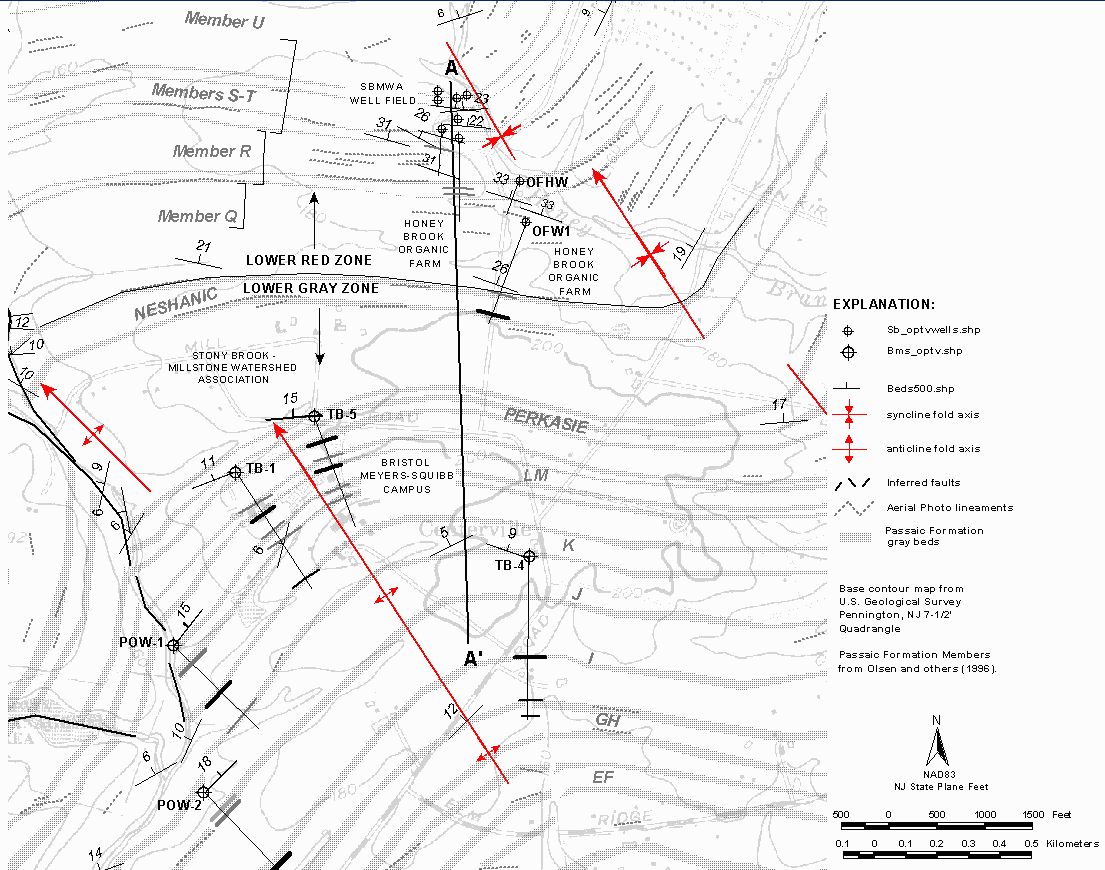

Stony_Brook_BMS_12k.gif 56033 2006-09-11 11:33 - 1:12,000 geological map of the area including the Stony Brook-Millstone Watershed Association and the Bristol-Meyers Squibb Campus.

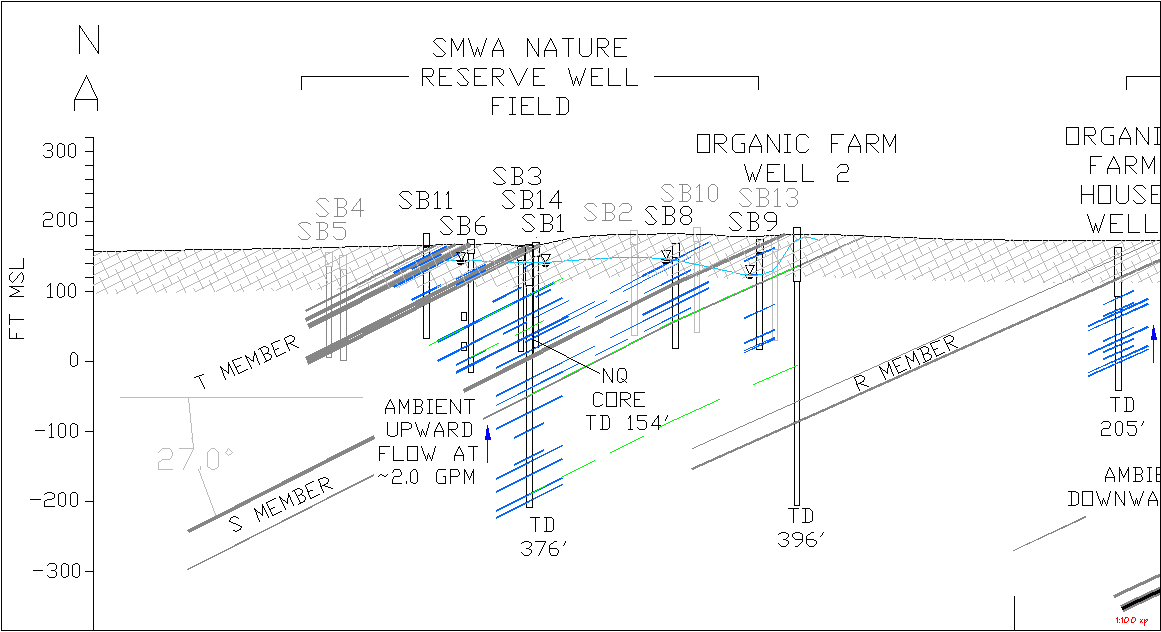

SB_profile_details.gif 30082 2008-04-01 12:43 - Hydrogeological profile interpretation of the well field
SB_profile_N.gif 34129 2008-04-01 12:35 - Hydrogeological profile interpretation of the well field

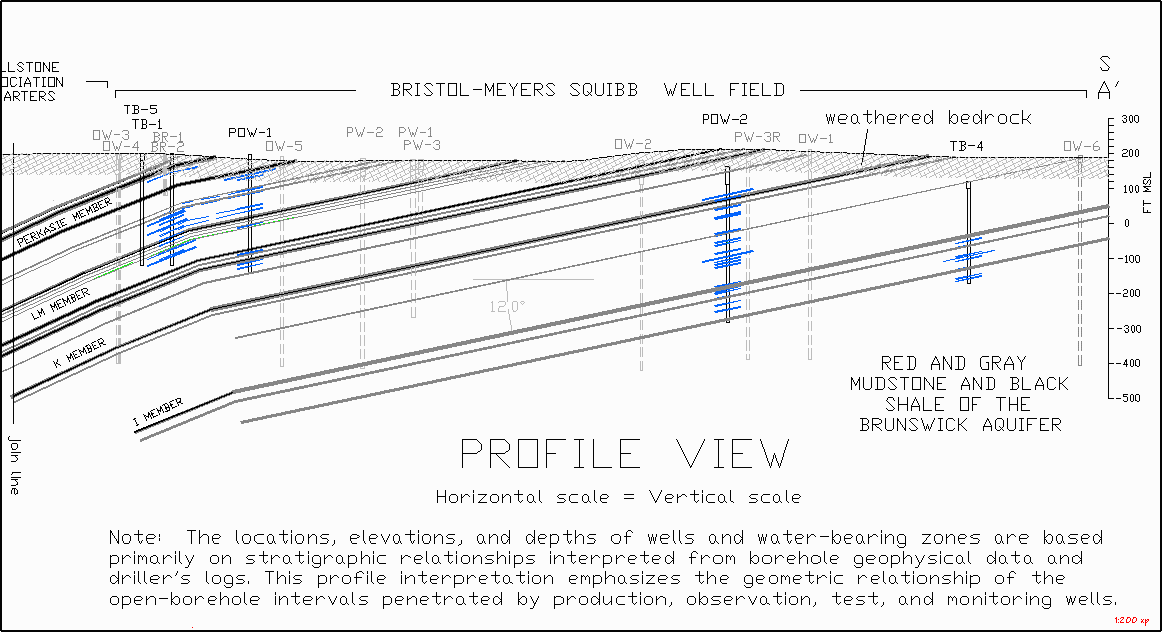

BMS_profile_S.gif 36585 2008-04-01 12:40 - Hydrogeological profile interpretation of the well field

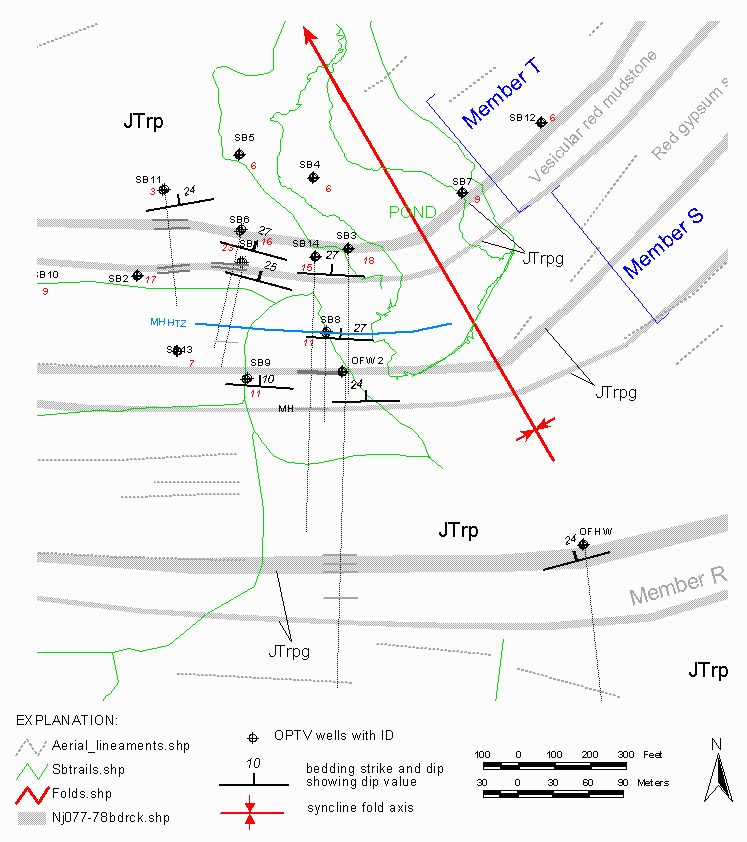

SB3200.GIF 24917 2008-03-20 7:41 - 1:32,000 map of the site showing wells having OPTV records
